Flash, unlock and repair devices without the guesswork.

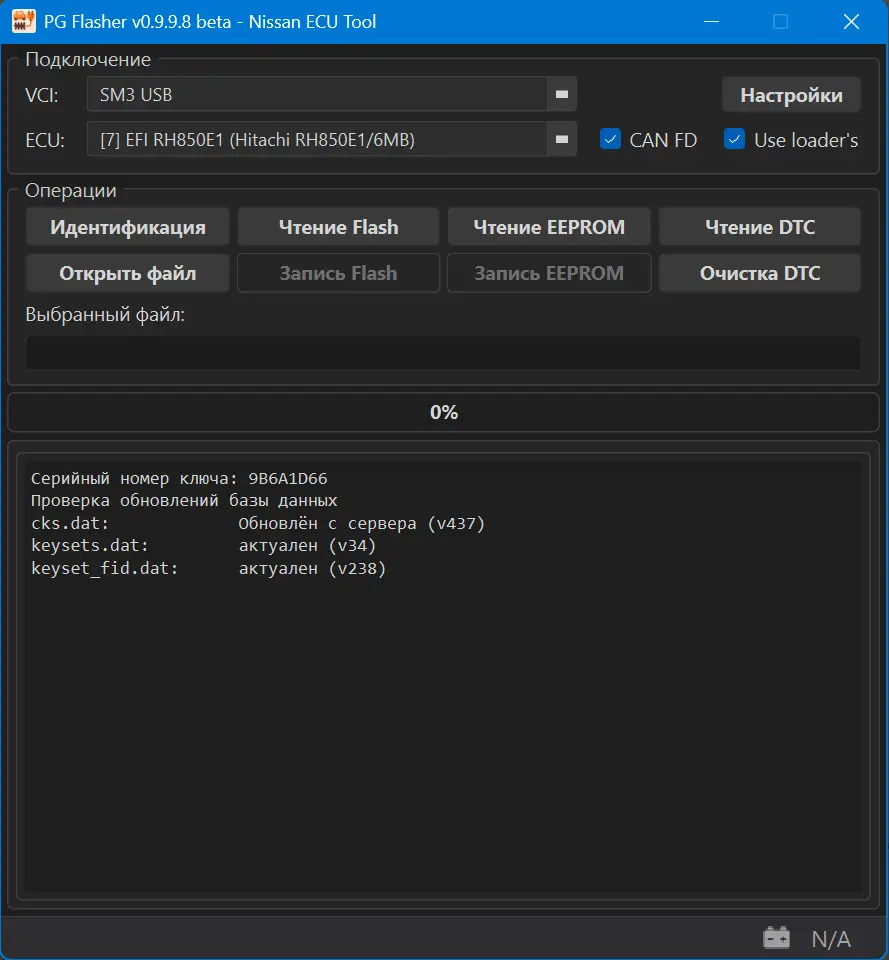

PG PG Flasher is a software tool for reading and writing full FLASH and EEPROM on Hitachi controllers in Nissan, Infiniti, and Mitsubishi Outlander vehicles, supporting CAN, K-Line, and CAN-FD. It works with J2534 adapters and offers online updates, checksum correction, and ECU cloning without disassembly.
Features
CAN bus
Direct connection to the vehicle's CAN bus without disassembling the ECU.
K-Line
Support for classic ECUs via the K-Line interface.
EEPROM
Reading and writing EEPROM without disassembling the control unit, working with the immobilizer.
Cloning
Possibility of cloning control units.
New models
Support for control units manufactured in 2022+: BED600-001 BED604-300 BED604-000 BED602-500 BED60B-500 BED604-500 BED607-000.
J2534
Support for standard J2534 adapters (Tactrix OpenPort, etc.).
Up and running in four steps
From payment to your first successful flash in under ten minutes.
Purchase
Choose a license and check out securely.
Receive key
Your license key and download link arrive instantly by email.
Install
Download PG Flasher and activate with your key.
Flash
Connect a device and run your first job.
PG Flasher is a software program designed to read and write full FLASH and EEPROM data for Hitachi controllers used in Nissan, Infiniti, and Mitsubishi Outlander vehicles. It supports CAN, K-Line, and CAN-FD protocols. The program is protected by Guardant DL software linked to the PC's hardware identifier. Unlimited OS reinstalls with manual reactivation are supported. License transfer to another PC is possible upon request, up to once every 180 days. In the event of complete data loss or PC failure, license recovery is not possible. The recovery service includes a new dongle and module recovery. The software operates via J2534 adapters. The following proven adapters are available for CAN-FD use: OpenPort 2.0, Chipsoft, Scanmatik 2 PRO, and Scanmatik 3.
Online updates, checksum verification and correction, and ECU cloning without disassembly are supported. The software package includes a Guardant software protection key, so no physical dongle is required. The key is not sold separately and is provided only as part of a module bundle. If you already have the key, additional modules can be purchased as upgrades.
Advantages and Features
- Reading and writing FullFlash and EEPROM
- Operation without opening the control unit
- Support for CAN, K-Line, and CAN-FD
- ECU cloning
- Checksum verification and correction
- Online updates
- Operation via J2534 adapters
- Writing only modified data – saves time
ATTENTION! This is a virtual product (software). Please select E-Mail Delivery in the cart!
Choose your license
Every plan includes the full feature set.
Activating the program
- ✓Includes a Guardant software security key. The key is not sold separately, but only as part of a module bundle. With the key, additional modules can be purchased as an upgrade.
Module 1
- ✓ Hitachi SH705101, SH705102, SH705415, and SH705507 ECUs
- ✓ K-Line, EEPROM, Boot, and OBD support
- ✓ Reads and writes full FullFlash and EEPROM
- ✓ Compatible with a wide range of Nissan/Infiniti control units
Module 2
- ✓ Supports Nissan Almera Classic SH705524 and SH705529 ECUs
- ✓ K-Line, EEPROM, Boot, and OBD support
- ✓ Reads and writes full FullFlash and EEPROM
- ✓ Suitable for a wide range of ECUs from this generation
Module 3
- ✓ Supports SH705520, SH707821, SH705823, SH705822, SH705826, and SH705927
- ✓ K-Line, EEPROM, Boot, and OBD support
- ✓ Reads and writes full FullFlash and EEPROM
- ✓ Designed for modern Nissan/Infiniti control units
Module 4
- ✓Supports SH705519, SH707822, SH705828, and SH705927 ECUs
- ✓CAN, EEPROM, Boot, and OBD support
- ✓Reads and writes complete FullFlash and EEPROM
- ✓Suitable for a wide range of control units
Module 5
- ✓Supports SH7253131, SH7253332, SH7253331, and SH7254332
- ✓CAN, EEPROM, Boot, and OBD support
- ✓Reads and writes full FullFlash and EEPROM
- ✓Compatible with a wide range of ECUs
Module 6
- ✓Supports Renesas RH850-based 2–4MB modules
- ✓CAN, EEPROM, Boot, and OBD support
- ✓Reads and writes full FullFlash and EEPROM
- ✓Direct ECU connection recommended for increased reliability
Module 7
- ✓Supports RH850 6MB modules
- ✓CAN, EEPROM, Boot, and OBD support
- ✓Requires direct ECU connection and Scanmatik 3 with CAN-FD
- ✓Currently in beta; ECU cloning is not supported
Module 8
- ✓Supports Renault and Samsung ECUs using SH7058 and SH72533
- ✓CAN, EEPROM, Boot, and OBD support
- ✓Full access to Flash and EEPROM
- ✓Works on-car and on-bench without opening the ECU
Trusted at the bench
What customers says.
Cut my average flash time in half and I haven't bricked a single device since switching.
The database updates alone are worth it. I stopped hunting forums for firmware files.
Support actually responds. Had a licensing issue fixed in under an hour.
Ready to flash smarter, not harder?
Get instant access to PG Flasher and start your first job in minutes.
Buy PG Flasher License
